Boat Fiberglass & Gelcoat Repair Guide: Fixing Cracks, Blisters & Scratches

Understanding the Anatomy of Fiberglass and Gelcoat

Repairing hull damage begins with understanding how modern composite boats are constructed. The structural core of the hull consists of woven fiberglass cloth or chopped strand mat saturated with polyester, vinylester, or epoxy resin. This laminate provides strength, flexibility, and impact resistance. Over this structural matrix lies the gelcoat, a specialized pigmented resin layer typically around twenty to thirty mils thick that seals the raw composite from water intrusion, blocks ultraviolet degradation, and delivers a glossy exterior finish.

When minor damage occurs, distinguishing between cosmetic issues and structural failure dictates your repair strategy. A light surface scratch or surface craze only affects the outer gelcoat layer. In contrast, deeper gouges, flexing spider cracks around stress points, or punctures penetrate through the gelcoat and fracture the glass fibers beneath. Ignoring structural fractures allows moisture to wick along raw strands, eventually causing delamination or core rot inside stringers and transoms.

Working on either layer requires different chemistries and tools. Gelcoat repairs focus on cosmetic filling, air-cure sealing, color matching, and wet-sanding to match the surrounding sheen. Fiberglass structural repairs demand grinding tapers, building laminate strength with overlapping glass fabric, and restoring flexural continuity. Knowing where the gelcoat ends and the composite begins ensures you do not apply cosmetic filler over weakened structural laminates.

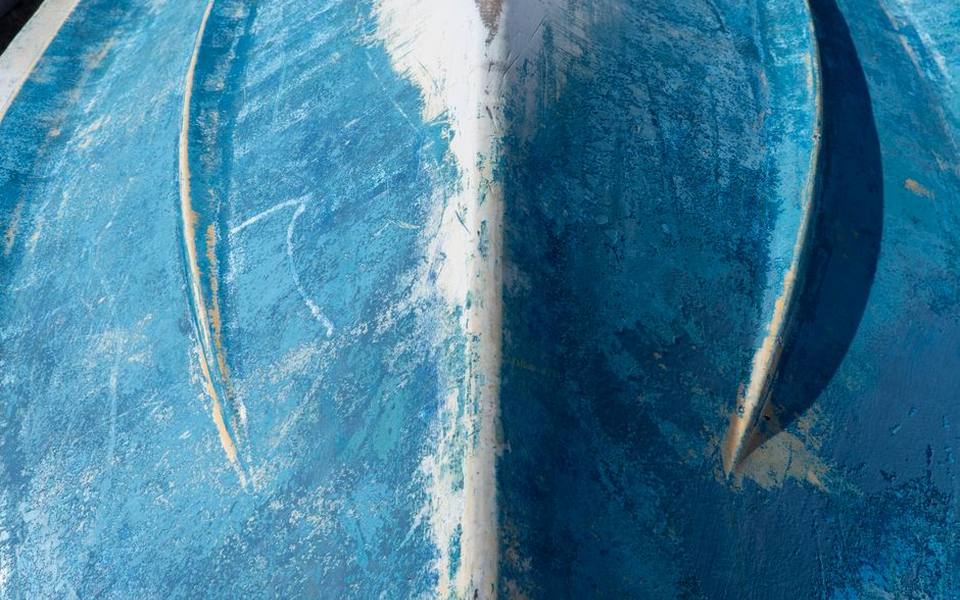

Assessing the Damage: Scratches, Crazing, and Deep Fractures

Before picking up tools, conduct a systematic survey of the affected area under direct, raking light. Clean the hull thoroughly using mild boat soap and water, followed by a solvent wipe to remove wax and road film. Scratches that do not catch your fingernail can often be compounded out without adding material. If your fingernail catches in the groove, the scratch has cut through the surface and needs fresh material to fill the void.

Spider crazing often looks like a series of tiny hairline fractures radiating outward from a central point, often near stanchions, cleat mounts, or tight hull chines. This usually indicates localized hull flex rather than impact damage. If the fiberglass beneath the craze is solid and unyielding when pressed firmly with your thumb, the issue is generally localized to brittle gelcoat. However, if the area deflects noticeably or sounds hollow when tapped with a plastic mallet, the underlying laminate requires reinforcement before launching from a boat launch ramp.

Severe impacts from docks or submerged debris create crushed or feathered edges where glass strands appear white, dry, or frayed. This indicates crushed resin matrix and fractured fibers. In such cases, cosmetic fixes will fail quickly because hull movement will reopen the seam. Mark the entire perimeter of damage with painter's tape, allowing several inches of margin around the visible impact zone to account for hidden subsurface delamination.

Selecting Resins, Fabrics, and Marine Repair Kits

Choosing compatible materials determines whether your patch lasts for years or peels away within a season. Most factory production boats are built with polyester or vinylester resin. For purely cosmetic gelcoat repairs, standard polyester gelcoat or a dedicated gel coat repair kit works well because it bonds chemically to the underlying polyester substrate and cures to a hard, buffable surface.

For structural repairs below the waterline, marine epoxy resin offers superior mechanical adhesion, water resistance, and tensile strength compared to polyester resin. Epoxy grips mechanically to cured polyester better than new polyester can. However, standard polyester gelcoat often fails to cure properly over epoxy due to chemical interference from amine blush. If you reinforce structural damage with epoxy, you typically finish the top layer with an epoxy-compatible fairing compound and marine polyurethane paint, or apply a specialized tie-coat primer before spraying gelcoat.

Glass fabrics also vary by application. Chopped strand mat dissolves its chemical binder in styrene-based polyester resin and works well for building bulk thickness quickly. Woven cloth and biaxial fabrics provide directional strength with less resin weight, making them the standard choice when patching load-bearing hull fractures. Keep both woven cloth and fairing thickeners on hand to address varying depths across your work area.

Step-by-Step Gelcoat Scratch and Gouge Repair

Begin a gelcoat repair by widening and cleaning the gouge. Use a rotary tool with a small burr bit, the edge of a clean triangular file, or a sharp bevel tool to open the scratch into a shallow V-shape. Beveling increases the contact surface area and eliminates undercut edges that trap air bubbles. Clean out all dust using oil-free compressed air, then wipe the groove thoroughly with pure acetone on a clean rag.

Mix your gelcoat paste according to product instructions, adding hardener carefully. Because gelcoat stays tacky when exposed to atmospheric oxygen, you must either add a liquid wax additive (paraffin solution) to the resin or cover the wet repair with plastic release film, such as PVA spray or clear mylar sheeting. Trowel the mixed gelcoat paste into the V-groove with a flexible plastic spreader, leaving the patch slightly proud of the surrounding surface to account for shrinkage during the curing process.

Once applied, tape clear plastic film smoothly over the patch to press out trapped air and seal out oxygen. Allow the gelcoat to cure completely until it is hard and dry to the touch, which typically takes several hours depending on ambient temperature. Remove the film and check the patch; if a pinhole or low spot remains, sand lightly with 220-grit paper, clean with acetone, and apply a thin second coat before moving to final fairing.

Diagnosing and Treating Osmotic Gelcoat Blisters

Osmotic blisters, often called boat pox, develop on fiberglass hulls when moisture penetrates the porous outer gelcoat and reacts with water-soluble components inside the polyester laminate. This chemical reaction creates acidic fluid inside tiny pockets beneath the skin. As osmotic pressure builds, the pocket expands outward, forming bumps that range in size from small peas to large blisters across the hull bottom, particularly on vessels kept in transient slips or seasonal wet storage.

Treating blisters requires opening them completely rather than simply covering them over. Grind away the blister cap using a die grinder with a carbide burr or coarse abrasive disc until sound, dry laminate is reached. The pocket often contains a vinegary-smelling liquid under pressure; rinse this residue thoroughly with clean fresh water to remove chemical salts, as solvent alone will not dissolve water-soluble acids.

The opened hull cavities must dry out completely before patching, which can take days or weeks depending on humidity and how deeply the hull laminate is saturated. Use a marine moisture meter to verify that the surrounding fiberglass is dry. Once dry, coat the depression with unthickened epoxy resin to wet out the fibers, fill the void with an epoxy fairing compound, and sand the patch flush. Finish with multiple coats of an epoxy barrier coat primer to prevent future moisture permeation.

Executing Structural Fiberglass Hull Patches

When an impact creates a puncture or structural fracture, grinding a proper scarf joint is the most critical step. A straight butt joint will fail under hydraulic load; you must grind a gradual taper around the damage at a ratio of roughly twelve to one. If the hull laminate is one-quarter inch thick, your ground bevel should extend outward at least three inches in every direction, exposing clean, sound glass fibers across a smooth saucer-shaped perimeter.

If the hole passes completely through the hull, install a temporary backing plate covered in plastic release film on the reverse side to support the fresh wet laminate. Cut multiple patches of woven fiberglass cloth, sizing each piece sequentially from the smallest footprint (matching the bottom of the ground taper) to the largest footprint (covering the outer edge of the beveled perimeter). This progressive layering rebuilds the original laminate thickness without creating high spots.

Saturate each piece of glass fabric thoroughly with mixed resin on a clean board before transferring it onto the hull. Work the material into place with a grooved laminating roller or a stiff squeegee to force out every trapped air pocket, which would otherwise form weak voids. Allow the structural repair to reach a full cure before removing the backing plate and repeating the bevel-and-patch process on the interior side if structural double-sided access is possible.

Mastering Gelcoat Color Matching and Tinting

Matching aged gelcoat is equal parts science and patience. Even if you obtain original factory gelcoat using your vessel hull identification number, sun exposure, weathering, and chalking will have altered the original shade. Always start with a white or neutral base gelcoat and introduce coloring pigments in minute quantities, often by dipping the tip of a toothpick into concentrated liquid pigment pastes.

Natural daylight is required for accurate color evaluation. Fluorescent and shop lights cast artificial spectrums that distort pale hues. Mix your color before adding the catalyst. To check the match, wipe a clean section of the surrounding hull with solvent to reveal its true wet appearance, then place a dab of your pigmented paste directly next to it. Catalyzed gelcoat typically cures slightly darker than its uncatalyzed wet paste form, so aim for a fractionally lighter match.

Keep written notes on your pigment ratios in case you need to mix a second batch later. If the boat has metallic flake, pearl coats, or heavy sun fading, perfect invisible matches can be difficult across large flat hull panels. In these situations, feathering your edges carefully and blending the perimeter into natural hull body lines will make the repair virtually undetectable from typical viewing distances.

Sanding, Compounding, and Polishing to a Factory Finish

Once the gelcoat patch has cured rock-hard, wet sanding blends the repair into the surrounding surface. Wrap wet-or-dry sandpaper around a firm, flexible rubber sanding block; never use your bare fingers, as uneven hand pressure creates ripples in the soft gelcoat. Start with 320-grit or 400-grit paper lubricated with water and a drop of dish soap to level the high spots until the patch sits completely flush.

Gradually step through finer grits—typically 600, 800, 1000, and finishing with 1500 or 2000-grit. Rinse the work area and wipe it dry between each grit change to inspect scratch patterns. Each successive grit removes the scratch marks left by the previous paper while expanding slightly beyond the original repair perimeter to feather the transition zones.

After finishing with 2000-grit, the surface should display a uniform, satin-smooth sheen. Use a rotary polisher fitted with a wool pad and a medium-cut marine rubbing compound running at moderate RPM to bring up the initial gloss. Follow up with a foam pad and a fine finishing polish to remove swirl marks, then seal the entire section with a high-grade marine paste wax to protect your repair from UV degradation.

Essential Environmental Controls and Workshop Safety

Composite work produces fine airborne glass particles and volatile organic compounds that require strict safety protocols. Always wear a dual-cartridge respirator fitted with organic vapor and P100 particulate filters when grinding, laminating, or spraying resins. Disposable dust masks do not block harmful styrene vapors. Protect your eyes with sealed goggles, and wear nitrile gloves to avoid chemical dermatitis caused by prolonged skin exposure to uncured resins and solvents.

Ambient temperature and humidity strongly govern resin curing dynamics. Most polyester and epoxy formulations require temperatures between sixty-five and eighty degrees Fahrenheit to cure predictably. Working in colder conditions slows curing drastically, leading to gummy patches, while excessive heat accelerates curing times so quickly that resin can boil or kick before air bubbles can be rolled out.

Relative humidity should ideally remain below seventy percent during repair work. High moisture levels in the air can condense onto exposed fiberglass, preventing proper bonding and causing amine blush on curing epoxies. If you are working outdoors at coastal facilities in states like marinas in Florida, plan your resin layups for dry mid-morning hours out of direct midday sun to avoid premature thermal gelation.

Long-Term Gelcoat Maintenance and When to Seek Professional Service

Protecting your newly repaired surfaces requires consistent seasonal upkeep. Keep the hull clean and apply a fresh coat of UV-inhibiting marine wax or ceramic sealant at least twice a year. If you keep your vessel in cold-weather regions near marinas in Michigan, ensure hull scratches are sealed before winter freeze-thaw cycles drive moisture deep into raw composite layers.

While DIY boat owners can resolve the vast majority of surface scrapes, crazing, and localized blister fields, some structural compromises exceed backyard repair capability. If you notice extensive core rot in a balsa or foam-cored hull, a deformed keel line, or structural cracks running through high-stress engine mounts and bulkheads, enlist an accredited marine surveyor or composite specialist.

Professional shops possess specialized tools such as infrared thermal imaging cameras to map deep internal delamination and vacuum-bagging equipment for high-pressure laminating. Knowing when to perform a reliable DIY patch and when to commission professional structural reconstruction protects both your investment and your safety on the water.
